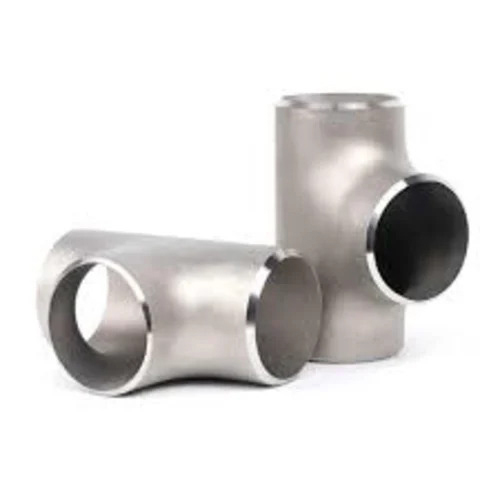

Stainless Steel Pipe Fitting

• Application
• other, Industrial piping, chemical processing, plumbing, oil & gas

• Bend Radius
• As per standard tee design

• Coating Type
• Uncoated

• Color
• Metallic Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 3 inch

• Flexibility
• Rigid

• Length
• As per standard fitting dimensions

• Material
• Stainless Steel

• Material Grade
• 304 / 316 / 316L

• Outer Diameter
• 3 inch (76.2 mm)

• Product Type
• Other, Pipe Fitting

• Rated Pressure
• Up to 150 psi (varies with schedule and material grade)

• Sealing Type
• Welded joint

• Section Shape
• Round

• Shape
• Other, Tee (T-shaped)

• Standard
• Other

• Surface Treatment
• Other, Pickled and Passivated

• Temperature Range
• -20C to 425C

• Tensile Strength
• 515 MPa (For SS 304)

• Thickness
• Schedule 40 (approx. 3.91 mm)

• Thread Type
• Not threaded (butt weld)

• Tolerance
• 0.5 mm

• Usage
• Fluid or Gas Conveyance

• Yield Strength
• 205 MPa (For SS 304)

• Application
• other, Process Piping, Fluid Transfer

• Bend Radius
• 90 angle (Tee)

• Coating Type
• Uncoated / Self-finish

• Color
• Silver

• Connection
• Other, Clamp/Triclamp

• Connection Type
• Tri-clover / Welded / Ferrule

• Diameter
• DN15 to DN100 (or as per requirement)

• Flexibility
• Rigid

• Length
• Customized / as per request

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316 / SS 316L

• Outer Diameter
• 25 mm to 104 mm

• Product Type
• Other, Dairy Tee

• Rated Pressure
• 10 bar to 16 bar

• Sealing Type
• Gasket (EPDM/Silicone/NBR, as compatible)

• Section Shape
• Round

• Shape
• Other, Tee (T-shaped)

• Standard
• Other

• Surface Treatment
• Other, Polished Mirror Finish

• Temperature Range
• -20C to 180C

• Tensile Strength
• 520 MPa (SS 304)

• Thickness
• 1.5 mm to 3 mm

• Thread Type
• Non-threaded

• Tolerance
• 0.2 mm

• Usage
• Dairy, Food & Beverage, Pharmaceutical, Chemical Industries

• Yield Strength
• 205 MPa (SS 304)

• Application
• other, Dairy and Food Processing Piping Systems

• Bend Radius
• 1D, 1.5D, Custom

• Coating Type
• Uncoated / Natural Stainless

• Color
• Silver

• Connection
• Other, Welded / Clamp / Threaded

• Connection Type
• Butt Weld, Tri-Clamp, Threaded

• Diameter
• 1 to 4 (25.4 mm to 101.6 mm)

• Flexibility
• Rigid

• Length
• As per Standard or Custom

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS304L / SS316L

• Outer Diameter
• 25 mm to 104 mm

• Product Type
• Other, Dairy Bend Elbow

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Gasket (for clamp ends)

• Section Shape
• Round

• Shape
• Other, Bend / Elbow

• Standard
• Other

• Surface Treatment
• Other, Polished / Mirror Finish

• Temperature Range
• -20C to 200C

• Tensile Strength
• Up to 515 MPa

• Thickness
• 1.2 mm to 5 mm

• Thread Type
• BSP, NPT (if threaded)

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food Processing, Beverage, Pharmaceuticals

• Yield Strength
• 205 MPa min

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Marine, Water Treatment

• Coating Type
• No coating / optional per order

• Color
• Natural Silver/Grey

• Connection
• Other, Welded

• Connection Type
• Buttweld

• Diameter
• Customized / As required

• Flexibility
• Rigid

• Length
• Customized

• Material
• Other

• Material Grade
• 304, 304L, 316, 316L, S31803, S32205, S32750

• Outer Diameter
• 1/2 to 24 (DN15 to DN600)

• Product Type
• Other, Seamless Tee

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Tee (T-shaped)

• Standard
• Other

• Surface Treatment
• Other, Pickled, Passivated

• Temperature Range
• -196C to +600C

• Tensile Strength
• 485 MPa min (for 304/316 SS)

• Thickness
• SCH10 to SCH160 or as per order

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting/Fluid Transfer

• Yield Strength
• 170 MPa min (for 304/316 SS)
